Tenders Description & Specification for Physics Laboratory Instruments for Tensile Testing

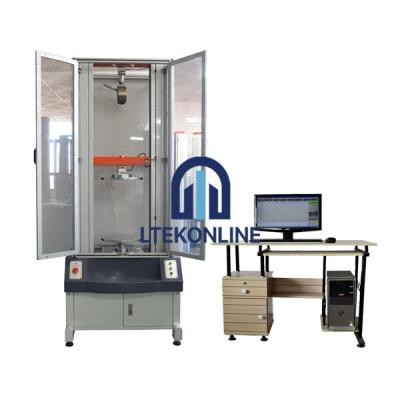

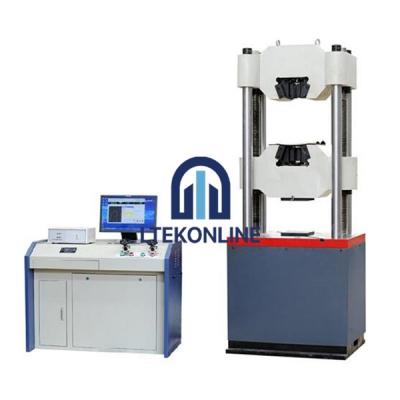

物理拉boratory Instruments for Tensile Testing
物理拉boratory Instruments for Tensile Testing is suitable to test tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished products. It is widely used in controling material quality.
Main Features of Universal tensile test machine:
Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
Apply brand computer as the main control system, computer control with software, back to origin automatically after the test, and can store data automatically or by manual operation
Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highly improve the loading efficience and structure rigidity.
Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.
Data transmission: RS232, and displacement resolution: 0.001mm.
Specifications of Universal testing machine
Capacity: 100. 200. 500. 1000. 2000. 3000. 5000. 10000kg
Display Device: LCD or PC / Tensile Testing Machine
Unit Switchover: G, KG, N, LB
Resolution: 1/250,000
Accuracy: ±0.5%
螺丝:高精密滚珠丝杆
Elongation Accuracy: 0.001mm
Power: AC220V, 50HZ or customized
Max. Stroke: 1000mm (including fixture)
Test Speed: 0.1-500mm/min (adjustable )
Motor: Panasonic Servo Motor
Weight: 500kg / Tensile Testing Machine.
Ltekonline are the manufacturers of Physics Laboratory Instruments for Tensile Testing used to demonstrate engineering principles in Engineering Colleges, Engineering Schools andUniversal Tensile Test Machinefor Engineering Teaching Lab in Universities
