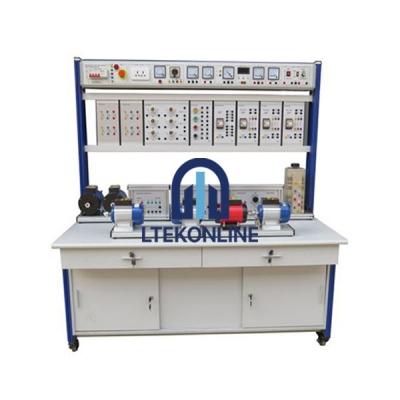

This training device includes various types of induction motors and industrial control components. Through relevant experiments, you can be familiar with the operating characteristics of AC motors, DC motors and transformers, master their control principles and control methods, and cultivate students' corresponding knowledge and skills.

Features:

The measuring instrument and the training power supply are installed with a built-in integrated hanging box, which is convenient to use and not easy to damage. Various types of motors are fully equipped and can be used in combination. The training platform adopts aluminum profile column frame structure, the whole is simple and generous, and a universal wheel is installed at the bottom, which can be flexibly moved and the height can be adjusted independently according to the ground situation.

The training platform has a good safety protection system.

The combination of software and hardware can complete the training content of a variety of courses

Performance Parameter:

Total capacity: <2KVA

Input power: three-phase five-wire system 380V ± 10% 60Hz

磨破king conditions: ambient temperature -10 ºC ~ + 40 ºC relative humidity < 85% (25 ºC)

Dimensions: 1600mm × 800mm × 1810mm

Weight: <250kg.
